    115.PXW-Z90V

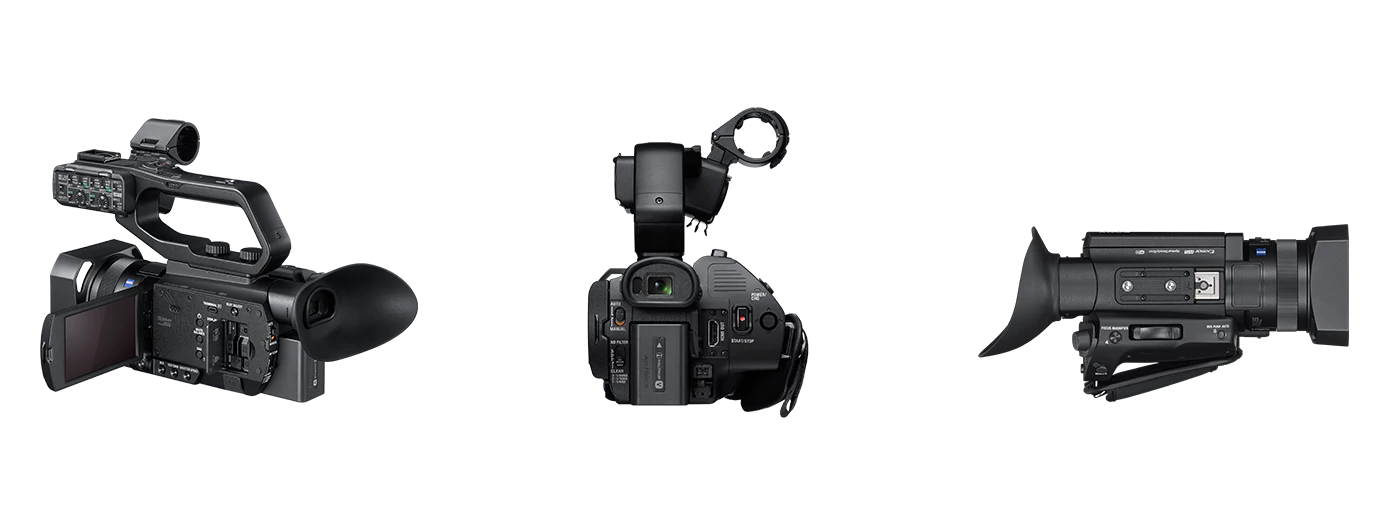

    Sony PXW-Z90V  1” Exmor RS CMOS 4KHDR Palm Cam with SDI

    Bilder können vom Originalprodukt abweichen

    Details: Sony PXW-Z90V 1” Exmor RS CMOS 4KHDR Palm Cam with SDI
    Marke:
    SONY
    Lager:
    Lieferbar
    statt
    3'321.80 CHF
    2'989.65 CHF
    zzgl. 7.7% MwSt.

    Sony PXW-Z90 4K HDR Pro Camcorder mit Fast Hybrid AF & 3G-SDI



    The PXW-Z90 offers broadcast quality 4K with advanced features such as high-speed Auto Focus, Instant HDR Workflow, up to 960fps* Super slow motion and streaming at 2.4GHz or 5GHz** with QoS.

    * 960 fps (NTSC). 1000 fps (PAL).

    ** 5GHz support dependent on support from country / regional regulation.



    Amazingly fast precision auto focus

    The PXW-Z90 incorporates an advanced Fast Hybrid AF system, alongside face detection and lock-on auto focus technology, making it easy to focus and track a subject while filming.




    First professional palm camcorder with 4K HDR

    The PXW-Z90 is the first professional palm-sized camcorder to deliver stunning 4K High Dynamic Range (HDR) content with Hybrid Log-Gamma (HLG) file-based workflows. S-Log3 is also supported, enabling you to create beautiful imagery with a wide colour gamut and colour range.

    *3840 x 2160 pixels. Connect this product to HDR (HLG) compatible TV via HDMI cable and turn to HDR (HLG) mode by TV when displaying 4K QFHD movies.



    Super slow motion up to 960fps* and S&Q motion up to 120fps**

    High Frame Rate shots can turn everyday actions into slow motion ballet and the PXW-Z90 delivers a stunning 120 frames per second (fps) in Full HD XAVC 10bit 4:2:2, giving you continuous 5 times slow motion expression. Higher frame rates up to 960fps using S&Q motion cache recording are also possible for even greater creative flexibility.

    * 960 fps (NTSC). 1000 fps (PAL).

    ** 120fps (NTSC)/ 100fps (PAL)



    Versatile connections for broadcast workflows

    The camcorder features a broadcast standard 3G-SDI output (supporting 1080 60p/50p), a Multi-Interface (MI) Shoe, HDMI and Remote interface to connect with and control remotely a wide variety of compatible Sony accessories, including creating a simple live solution when connected to the optional MCX-500 Multi Camera Live Producer and RM-30BP Remote Commander.



    Revolutionary imaging performance with Exmor RS

    To deliver imaging performance previously impossible for a compact camcorder. A large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame.

    The sensor gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux*.

    * LOW LUX mode



    Enhanced Fast Hybrid auto focus captures action

    Enhanced Fast Hybrid auto focus (AF) is comprised of a number of features: Phase-detection AF with up to 273 reference points covering approximately 84% of the image area, face detection and lock-on auto focus technology to estimate subject movement. They all work together seamlessly to capture fast-moving subjects with amazing sharpness.



    Instant HDR workflows

    Shoot, edit and view HDR content in HLG without the need for additional colour grading.

    As the expanding need for HDR content continues, internet video platforms and professionals producing corporate or event content are paying more attention to the added value of HDR. They need to deliver content quickly, without compromising on imaging expression and quality of content. To meet this demand, the PXW-Z90 offers Hybrid Log-Gamma (HLG) recording, in addition to S-Log3, for easy file-based workflows, whilst achieving the image quality of HDR. This simple workflow enables the shooting, editing and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional color grading.



    Stunning slow motion in Full HD

    High Frame Rate shots can turn everyday actions into slow motion ballet and the PXW-Z90 delivers up to 120 frames* per second (fps) in Full HD, giving you a maximum of 5 times slow motion expression. There's no sacrifice in bit depth and no "windowing" of the sensor. So there's no crop factor, no loss in angle of view. Higher frame rates of 240, 480 and 960 fps are also possible at specific resolutions.

    * 120fps (NTSC)/ 100fps (PAL)

    Broadcast quality 4K (QFHD) and HD

    The PXW-Z90 allows you to record a wide range of 4K (QFHD) and HD formats for maximum flexibility from thisstunning palm-sized camcorder. The Z90 supports XAVC QFHD 100Mbps recordings at 30p/25p/24p, XAVC HD Long GOP 422 50Mbps, MPEGHD422 50Mbps*, MPEGHD420 35Mbps and AVCHD.

    * MPEG HD recording requires optional licence (CBKZ-SLMP) upgrade.




    Networked for high mobility

    The PXW-Z90 comes with 5GHz* and 2.4GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

    * 5GHz support dependent on country/regional regulation.

    Ustream® Direct Streaming allows you to share scenes as they happen with high quality picture and sound without a switcher.

    QoS Streaming to XDCAM air allows images to be streamed live from the camcorder for viewing at a remote location.

    FTP Transfer allows content files recorded with MPEG HD 422/420 proxy feature (CBKZ-SLMP required) and other content files shot in XAVC (QFHD/FHD) and AVCHD formats to be sent over the internet for remote storage on an FTP server.

    XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting’s still going on, saving even more valuable time when a story’s breaking.

    Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the PXW-Z90 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 - 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity

    Wired LAN connection allows the PXW-Z90 to be connected to the internet over a wired connection via the separately available VMC-UAM2 USB adapter cable and network adaptor kit (CBK-NA1), allowing files to be streamed or transferred by FTP.

    * The Content Browser Mobile™ application can be downloaded from the Google Play Store or App Store. Wi-Fi operation cannot be guaranteed with all smartphones and tablet computers.





    Wide-angle zoom lens with great control

    The PXW-Z90 is supplied with a fixed 29mm wide-angle ZEISS Vario-Sonnar T* lens, ideal for capturing panoramic landscapes. The 12x optical zoom can be increased to 18x with Clear Image Zoom, maintaining QFHD resolution using Super Resolution Technology or 24x in HD. In addition, the Digital Extender can double this range again, up to 48x zoom.

    The camcorder’s lens ring enables smooth, natural adjustment of focusing or zooming, depending on which mode is selected; while the manual dial and buttons on the side of the body allow swift and easy adjustment of IRIS (aperture), ISO/GAIN and shutter speed.



    Superb quality monitoring with enhanced OLED viewfinder

    You have superb monitoring options with the Z90: an enhanced 0.39-type 2359K dot OLED viewfinder and 3.5-type 1550K dot LCD. The super high resolution OLED viewfinder offers excellent quality brightness, contrast and response, giving you better precision of manual focus operations and eliminating any colour-breaking phenomenon. The LCD gives you further flexible composition options.



    Dual XLR inputs

    The Z90 has two XLR connecters – so even if you remove the handle with its standard, easy-access XLR connector then a second on the body is still available, making it ideal for applications such as shooting in a confined space, such as a car interior, or when mounting on a gimbal.



    Remote operation

    The PXW-Z90 has a featured remote interface (2.5 mm stereo mini-mini jack) wired interface. Using a wired remote controller such as the RM-1BP or RM-30BP the focus, zoom, rec start/stop and rec review can be controlled remotely. The camcorder can connect to the optional RM-30BP and MCX-500 Multi Camera Live Producer to form a simple live solution.



    Dual media slots

    To extend recording time and workflow flexibility, the PXW-Z90 is equipped with two memory card slots and is compatible with SDXC and SDHC cards as well as Memory Stick PRO Duo (Mark 2) / PRO-HG Duo*.

    Relay mode automatically switches recording from the first to the second memory card when the first is full; Simul mode allows simultaneous recording to two memory cards (for example to create an immediate back-up version). The PXW-Z90’s two Start/Stop buttons on the handle grip and camcorder body can independently start and stop recording on different memory cards while recording in Simul mode.

    * Memory Card Slot 1 only



    Multi-Interface (MI) Shoe

    The PXW-Z90 takes advantage of Sony’s flexible Multi-Interface (MI) Shoe, which provides power, signal connections and coordinated on/off switching to compatible Sony accessories. For example, you can connect and control Sony UWP-D wireless microphone systems (sold separately).



    Wide choice of connections

    The PXW-Z90 offers numerous connections to suit the broadcast workflow, including 3G HD-SDI, HDMI®, Multi/Micro USB jack and composite output. The Rec Trigger signal can be sent through SDI and HDMI to link an external recording device. HDMI/SDI/composite output is possible during QFHD recording*.

    * HDMI supports up QFHD resolution, 3G-SDI supports up to HD resolution. Composite is SD-only.

    Simple live solution

    The PXW-Z90 is designed to work seamlessly with Sony’s MCX-500 Multi Camera Live Producer, a robust and cost-effective switcher that makes it easy for one person to run a multi-camera live event shoot. When used with the MCX-500 and Remote Commander RM-30BP, a Tally indicator will automatically appear on each PXW-Z90’s LCD panel and viewfinder – a red icon indicates when the shot is live (PGM) while Green indicates preview mode (PVW). The MCX-500 supports up to 9 video inputs, 5 channel stereo inputs including XLR with both internal recording and live streaming via Ustream™, Facebook Live, and Youtube Live*.

    *Facebook live and YouTube live available with V2.0 firmware



    Easily Synchronise Multiple Camcorders

    When shooting with multiple camcorders, you can synchronize the timecode of each camcorder using Content Browser Mobile™ (CBM) smartphone application* with optional CBKZ-WTCL upgrade. With this feature, all camcorders can synchronise to the primary camcorder you select or to a manually set time – whichever you prefer.

    *Version 3.0 Content Browser Mobile™ required which is compatible with iOS 9.0 - 10.3 or Android 4.4 through 7.1.















    Help's right here when you need it. PrimeSupport goes beyond your standard warranty, giving you privileged access to expert technical advice when you need it. And that's just the start. Depending on your Sony product and chosen level of PrimeSupport, you'll enjoy more great benefits for extra peace of mind.




    Technische Daten

    Bitte beachten Sie, dass die Funktionen/technischen Daten sich von Land zu Land unterscheiden können.

    General

    Mass Approx 1020g (with lens hood, eyecup)
    Approx. 2 lb 4.0 oz (with lens hood,eyecup)
    Approx. 1390g (with lens hood, handle, eyecup, NP-FV70A battery)
    Approx. 3lb 1oz (with lens hood, handle, eyecup, NP-FV70A battery)
    Dimensions (W x H x D) 121.0mm×104.0mm×274.5mm (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
    4 7/8 x 4 1/8 x 10 7/8 inches (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
    130.0 x 181.5 x 287.0 mm (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
    5 1/8 x 7 1/4 x 11 3/8 inches (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
    Power Requirements DC In: 8.4V
    Battery: 7.4V
    Power Consumption Approx. 6.5 W(while recording with viewfinder and XAVC QFHD 2160/30p 60Mbps)
    Approx. 6.9 W (while recording with LCD and XAVC QFHD 2160/30p 60Mbps)
    Operating Temperature 0°C to 40°C
    32°F to 104°F
    Storage Temperature -20°C to +60°C
    -4°F to +140°F
    Battery Operating Time Approx. 140min. with NP-FV70A battery (while recording with LCD, XAVC QFHD 2160/30p, 60Mbps)
    Approx. 265 min. with NP-FV70A battery (while playing with LCD, XAVC QFHD 2160/30p, 60Mbps)
    Recording Format (Video) XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
    XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
    XAVC Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
    MPEG HD422 (CBKZ-SLMP required) : MPEG-2 422P@HL 4:2:2 Long profile
    MPEG HD420 (CBKZ-SLMP required) : MPEG-2 MP@HL 4:2:0 Long profile
    MPEG HD Proxy (CBKZ-SLMP required) : MPEG-4 AVC/H.264 4:2:0 Long profile
    AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
    Recording Format (Audio) XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
    XAVC HD : Linear PCM 2ch, 24bit, 48kHz
    XAVC Proxy : AAC-LC 2ch、16bit、48kHz
    MPEG HD422 (CBKZ-SLMP required) : Linear PCM 2ch, 24bit, 48kHz
    MPEG HD420 (CBKZ-SLMP required) : Linear PCM 2ch, 16bit, 48kHz
    MPEG HD Proxy (CBKZ-SLMP required) : AAC-LC 2ch、16bit、48kHz
    AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
    Recording Frame Rate XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
    XAVC HD (1920 x 1080) @59.94p, 50p, 29.97p, 25p, 23.98p, 50Mbps/35Mbps
    XAVC HD (1920 x 1080) @59.94i, 50i, 50Mbps/35Mbps/25Mbps
    XAVC HD (1280 x 720) @59.94p, 50p, 50Mbps
    XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
    XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
    MPEG HD422 (1920 x 1080) (CBKZ-SLMP required) @59.94i, 50i, 29.97p, 25p, 23.98p, 50Mbps
    MPEG HD422 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 50Mbps
    MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode(35Mbps)
    MPEG HD420 (1440 x 1080) (CBKZ-SLMP required) @59.94i, 50i, HQ mode(35Mbps)
    Recording Frame Rate (Cont.) MPEG HD420 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, HQ mode(35Mbps)
    MPEG HD Proxy (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
    MPEG HD Proxy (640 x 360) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
    AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28Mbps)
    AVCHD (1920 x 1080) @59.94i/50i FX mode (24Mbps) FH mode(17Mbps)
    AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24Mbps)
    AVCHD (1440 x 1080)@59.94i, 50i LP mode (5Mbps)
    AVCHD (1280 x 720)@59.94p, 50p, HQ mode (9Mbps)
    Recording/Playback Time XAVC QFHD @LPCM 2ch 100 Mbps
    Approx. 65 min with 64 GB memory card
    XAVC QFHD @LPCM 2ch 60 Mbps
    Approx. 100 min with 64 GB memory card
    XAVC HD @LPCM 2ch 50 Mbps
    Approx. 120 min with 64 GB memory card
    XAVC HD @LPCM 2ch 35 Mbps
    Approx. 170 min with 64 GB memory card
    XAVC HD @LPCM 2ch 25 Mbps
    Approx. 220 min with 64 GB memory card
    MPEG HD422 (CBKZ-SLMP required) @LPCM 2ch 50 Mbps
    Approx. 110 min with 64 GB memory card
    MPEG HD420 (CBKZ-SLMP required) @LPCM 2ch HQ Mode
    Approx. 170 min with 64 GB memory card
    AVCHD @LPCM 2ch PS Mode
    Approx. 305 min with 64 GB memory card
    AVCHD @LPCM 2ch FX Mode
    Approx. 360 min with 64 GB memory card
    Recording/Playback Time (cont.) AVCHD @LPCM 2ch FH Mode
    Approx. 495 min with 64 GB memory card
    AVCHD @LPCM 2ch HQ Mode
    Approx. 880 min with 64 GB memory card
    AVCHD @LPCM 2ch LP Mode
    Approx. 1540 min with 64 GB memory card



    Lens

    Lens Mount Fixed
    Zoom Ratio 12x (optical), servo
    Focal Length f=9.3 - 111.6mm
    equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9)
    equivalent to f=32.8 - 393.6mm on 35mm lens(3:2)
    Iris F2.8 - F4.5
    auto/manual selectable
    Focus AF/MF selectable
    10 mm to ∞ (Wide)
    1000 mm to ∞ (Tele)
    Image Stabilizer ON/OFF selectable, shift lens
    Filter Diameter M62 mm



    Camera Section

    Imaging Device (Type) 1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
    Effective Picture Elements Approx.14.2M pixels(16:9)/Approx.12.0M pixels(3:2)
    Built-in Optical Filters OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
    Minimum Illumination Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
    Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)

    LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
    LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)
    Shutter Speed [60i]: 1/8 - 1/10,000
    (1/6 - 1/10,000 when shooting with 24p)
    [50i]: 1/6 -1/10,000
    Slow & Quick Motion Function [60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
    [50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
    [60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
    [50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
    Super Slow Motion [60i]1080p:Frame rate selectable 240,480,960fps
    [50i]:1080p:Frame rate selectable 250,500,1000fps
    White Balance Preset(Indoor:3200K, Outdoor:5600K±7 steps, Color temparature set range:2300-15000K)
    Onepush A, B, Auto selectable
    Gain -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
    Gamma Curve Selectable



    Input/Output

    Audio Input XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
    Video Output Integrated into Multi/Micro USB jack(×1), Composite 1.0Vp-p, 75Ω
    Audio Output Integrated into Multi/Micro USB jack
    SDI Output BNC (x1), 3G/HD/SD
    SMPTE 424M/292M/259M standards
    USB Multi/Micro USB jack (x1)
    Headphone Output Stereo mini jack (x1)
    Speaker Output Monaural
    DC Input DC jack
    Remote Integrated into Multi/Micro USB jack
    Stereo mini-mini jack (Φ2.5mm)
    HDMI Output Type A (x1)



    Monitoring

    Viewfinder 1.0cm(0.39 type)OLED
    Approx. 2.36M dots
    LCD 8.8cm(3.5 type)
    Approx. 1.56M dots



    Built-in Microphone

    Built-in Microphone Omni-directional stereo electret condenser microphone



    Media

    Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1



    Wi-Fi/NFC

    Supported format IEEE 802.11 a/b/g/n/ac
    Frequency band 2.4 GHz bandwidth
    5.2/5.3/5.6/5.8 GHz bandwidth
    Security WEP/WPA-PSK/WPA2-PSK
    NFC NFC Forum Type 3 Tag compliant



    Supplied Accessoies

    Supplied Accessoies XLR handle unit (1)
    Lens hood (1)
    Lens cap (1)
    Large eyecup (1)
    Accessory shoe kit (1)
    USB cable (1)
    Rechargeable battery pack (NP-FV70A) (1)
    AC Adaptor (AC-L200D) (1)
    Power cord (mains lead) (1)
    Wireless Remote Commander (RMT-845) (1)
    Lithium battery (CR2025 for the Wireless Remote Commander) (1), Pre-installed to the Wireless Remote Commander
    Operating Guide (2)
    CD-ROM “Manuals for Solid-State Memory Camcorderr” (1)
    Warranty (1)



    Notes

    * [60i]: when [60i/50i SEL] is set to 60i
    [50i]: when [60i/50i SEL] is set to 50i
