    125.710-0242-STD

    SCARLET-W BRAIN  (Standard OLPF)

    Bilder können vom Originalprodukt abweichen

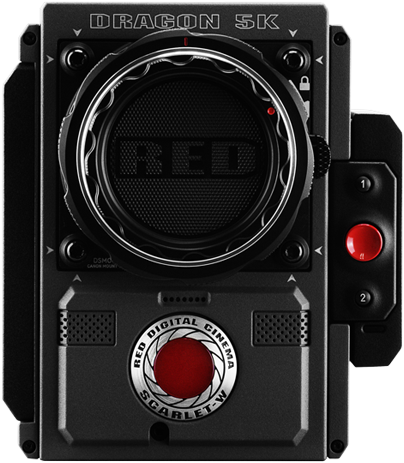

    Details: SCARLET-W BRAIN (Standard OLPF)
    Marke:
    RED
    Lager:
    Nicht am Lager
    12'600.00 CHF
    zzgl. 8% MwSt.

    SCARLET-W represents our passion and dedication to carrying on the legacy started by RED ONE®—disrupting the industry and delivering a camera of unparalleled quality and acessibility to content creators everywhere. And now RED has changed the industry again, with the SCARLET-W, powered by a REDDRAGON® sensor and featuring interchangeable lens mounts and OLPFs.

    SCARLET-W harnesses the RAW performance, advanced color science, and impressive dynamic range of the RED DRAGON sensor. Capable of shooting 5K motion and stills at up to 60 fps, SCARLET-W offers 13.8 megapixels of resolution for creative control, special effects, and post-production mastery. As part of RED’s latest generation DSMC2 line, SCARLET-W also features numerous enhancements including simultaneousREDCODE RAW® and Apple ProRes recording, integrated smart connectors for cable-free peripheral attachment, and faster read/write speeds for lower compression—all in a small and lightweight form factor.

    Designed around the innovative modular architecture of the DSMC2™ family, SCARLET-W is compatible with all of your DSMC2 accessories. Whether you are shooting with a single camera—or an entire arsenal, RED’s modular approach ensures that your DSMC2 accessories are compatible with SCARLET-W, RED RAVEN™, and WEAPON® cameras.

    This product includes the SCARLET-W BRAIN (w/ integrated media bay), DSMC AC Power Adaptor,SCARLET-W Case, a 1-Year Standard Warranty, and the DSMC2 OLPF of your choice. Choose between Standard, Skin Tone-Highlight, Low Light Optimized, or the 3-Pack for all three at an additional cost. See the Included Tab for more information.

    NOTE: An expander module or the DSMC2 REDVOLT® XL Module is required to power the BRAIN.

    NOTE: Only one (1) expander module can be used at a time.

    IMPORTANT: Existing SCARLET DRAGON Owners are eligible for a special package pricing. For more information, please contact us.


    SCARLET-W
    SENSOR TYPE RED DRAGON® 13.8 Megapixel CMOS
    EFFECTIVE PIXELS 5120 (h) x 2700 (v)
    SENSOR SIZE 25.6 mm (h) x 13.5 mm (v) x 28.9 mm (d)
    DYNAMIC RANGE 16.5+ stops
    SIGNAL-TO-NOISE-RATIO 80 dB
    MAX DATA RATES Up to 140 MB/s using RED MINI-MAG®
    MAX FRAME RATES 1 50 fps at 5K Full Frame (5120 × 2700) and 9:1REDCODE
    60 fps at 5K 2.4:1 (5120 × 2160) and 8:1REDCODE
    100 fps at 4.5K Full Frame (4608 × 2412) and 14:1REDCODE
    120 fps at 4.5K 2.4:1 (4608 × 1944) and 13:1REDCODE
    120 fps at 4K Full Frame (4096 × 2160) and 13:1REDCODE
    150 fps at 4K 2.4:1 (4096 × 1728) and 13:1REDCODE
    160 fps at 3K Full Frame (3072 × 1620) and 10:1REDCODE
    200 fps at 3K 2.4:1 (3072 × 1296) and 10:1REDCODE
    240 fps at 2K Full Frame (2048 × 1080) and 7:1REDCODE
    300 fps at 2K 2.4:1 (2048 × 864) and 7:1REDCODE
    PLAYBACK FRAME RATES
    (PROJECT TIMEBASE)
    23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 fps, all resolutions
    REDCODE® COMPRESSION 1
    SETTINGS RANGE FROM 2:1 UP TO 22:1
    4:1 REDCODE for 5K (5120 × 2700) at 24 fps
    8:1 REDCODE for 5K (5120 × 2700) at 48 fps
    3:1 REDCODE for 4K (4096 × 2160) at 24 fps
    7:1 REDCODE for 4K (4096 × 2160) at 60 fps
    REDCODE RAW
    ACQUISITION FORMATS
    5K Full Frame (5120 × 2700), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1
    4.5K Full Frame (4608 × 2412), 2:1, 2.4:1, 16:9, 3:2, 4:1, 8:1
    4K Full Frame (4096 × 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1
    3K Full Frame (3072 × 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1
    2K Full Frame (2048 × 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1
    APPLE PRORES Apple ProRes 422 HQ up to 2K (2048 × 1080) and up to 60 fps
    Apple ProRes 422 up to 2K (2048 × 1080) and up to 60 fps
    Apple ProRes 422 LT up to 2K (2048 × 1080) and up to 60 fps
    TYPICAL MAX RECORDING TIME
    USING RED MINI-MAG 120GB
    5K (5120 × 2700) at 24 fps and 11:1 REDCODE: 41 minutes
    5K (5120 × 2700) at 48 fps and 14:1 REDCODE: 26 minutes
    4.5K 2.4:1 (4608 × 1944) at 120 fps and 15:1REDCODE: 17 minutes
    CONSTRUCTION Aluminum Alloy
    WEIGHT 3.5 lbs (BRAIN with Integrated Media Bay)
    OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
    STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
    COLOR MANAGEMENT Supports 17×17×17 3D LUTs
    Variable number of 3D LUT outputs with Expander Modules
    User programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing
    AUDIO Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
    Optional 2 additional channels with Expander Module, uncompressed, 24-bit 48 kHz
    REMOTE CONTROL Built-in Wireless.
    Ethernet, RS232, and GPI Trigger with Expander Modules.
    MONITOR OUTPUTS 3G-SDI (HD-SDI) and HDMI with Expander Modules
    1080p RGB or 4:2:2, 720p RGB or 4:2:2
    480p RGB or 4:2:2 (HDMI Only)
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
    MONITOR OPTIONS DSMC² RED Touch 4.7" LCD, DSMC² RED Touch 7.0" LCD and DSMC² RED EVF (OLED) with cable-free connection.
    RED Touch 9.0" LCD, RED Touch 7.0" LCD, REDTouch 5.0" LCD, RED PRO 7" LCD, BOMB EVF(OLED) and BOMB EVF (LCOS)
    compatible with DSMC² LEMO Adaptor andLCD/EVF cable.
    REDCINE-X PRO®
    DELIVERY FORMATS
    4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, Avid AAF, MXF
    1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
    VIDEO EDITING SOFTWARE
    COMPATIBILITY
    Adobe® Premier® Pro, Avid® Media Composer®
    DaVinci Resolve®, Edius Pro®, Final Cut Pro®, Vegas Pro®

    1. REDCODE values and max frame rates may vary based on selected acquisition format/aspect ratio.
